Ariel Singerman, Marina BuraniArouca, and Stephen H. Futch^{2}
In this article, we summarize the results of an analysis to examine the profitability of three tree densities under different production and market conditions. We found that establishing a new grove with a tree density similar to that of the state’s average is not profitable under current market conditions. In addition, such density only attains a modest return under potentially higher prices. Despite the higher level of investment required for planting higherdensity groves, such investments are profitable under the assumptions and scenarios analyzed. Our results should prove useful to citrus growers looking to invest in alternatives that have the potential to improve their profitability.
Our analysis is for Valencia oranges, which are the predominant late variety produced in Florida, accounting for approximately 55% of the bearing acreage of oranges grown in the state during the last few years. The choice of this variety determines the values for yields and prices used in our model. Our cost estimates, however, are also applicable to early varieties. The basis for our annual estimates on cost of production is the survey data collected in southwest Florida in 2016/17 for growing processed oranges (Singerman 2018). As is typical for developing Extension budgets, our computations and analysis are for one representative acre. However, for the purposes of calculating the necessary investment in machinery and associated fixed costs, we assume the operation has 250 net acres; smaller operations would likely find it more costeffective to hire caretakers to perform the cultural practices.
The treedensity baseline for our analysis is 145 trees per acre, which is the average tree density reported by growers participating in the survey, and which is also similar to the state average for a citrus grove in Florida (USDANASS 2017). The betweenrows and betweentrees spacing associated with 145 trees per acre is 25 by 12 feet, respectively. We also analyzed two higher tree densities, namely 220 trees per acre (with 22 by 9 feet spacing between rows and trees, respectively) and 303 trees per acre (with 18 by 8 feet spacing between rows and trees, respectively). These two higher densities are based on the feedback we obtained from growers who have already planted highdensity groves.
Irrigation and frost protection are a key component of the investment in a new grove. Thus, to estimate such an investment, the first step was to determine the quantity of water needed for each tree density. The pertree water needs for a grove with 140 trees per acre are 14 and 39 gallons per day for winter and summer months, respectively, whereas a grove with 218 trees per acre will need 9 and 25 gallons per tree per day for winter and summer months, respectively (Parsons and Morgan 2017). To compute the water required to irrigate a grove with 303 trees per acre, we extrapolated the water requirements based on the percentage of additional trees with respect to 220 trees per acre, taking into account a reduction in pertree water needs; we found the pertree water needs for a grove planted at 303 trees per acre to be 7 and 19 gallons per day for winter and summer, respectively. We then established the volume of annual irrigation needed by taking into account the amount of water that trees receive from rainfall. We estimated the historical average rainfall in three representative citrusgrowing cities in Florida from 2010 to 2016 using data from the Florida Automated Weather Network (FAWN). Then, based on the gallons of water needed per day per tree for each tree density, we calculated the average amount of irrigated water needed each month to supplement rainfall.
To account for frost protection, we assumed four radiation frost events per year based on Jackson, Morgan, and Lusher (2015). During each event, the irrigation system was assumed to be run for 12 continuous hours. We assumed a 50acre irrigation zone based on feedback from irrigation supply companies. We also made assumptions regarding the use of microsprinklers, which in turn affected the decision of the capacity of the waterwell and pump needed, which is different for each tree density. Then we gathered appropriate quotes for the equipment and computed the variable costs associated with the irrigation system (such as pumping hours and diesel consumption, repairs, and maintenance using feedback from suppliers).
We assume that the average expected lifespan of a grove in Florida has decreased from 30 to 20 years as a consequence of the impact of HLB. The disease has also affected tree mortality, which we assume to be 3% in years 2 through 6 and 5% from years 7 through 20. These figures are based on growers’ feedback. However, the treereplacement strategy for removed trees is based on a sensitivity analysis that maximizes profit. In our model, we also assume that the following cultural activities are contracted: land preparation and bedding, fertilization, hedging and topping, tree removal, and tree replacement. Regarding the land, we assume it is already owned.
Within cultural cost of production, foliar sprays are the largest expense in the caretaking of groves, accounting for 34% of the total (Singerman 2018). Because we assume the use of treesensing technology for the application of foliar sprays, we wanted to obtain the cost of materials per tree by age. To calculate such cost per tree, we divided the cost per acre of the foliar sprays program by the total number of trees in the year in which trees reach maturity. Taking into account the HLBstunting effect on citrus trees, we assumed it would take 12 years for them to reach full growth (height). Thus, the material application rate for trees between 1 and 11 years old was computed taking into account a percent reduction relative to mature trees based on their age (and height). Once we obtained the cost per tree by tree age, we computed the foliar sprays costs per acre for each year by simply multiplying the number of trees in each age cohort by the associated foliar spray cost per tree.
Fertilizer is the secondlargest expense in the caretaking of groves, which accounted for 21% of the cultural cost of production in 2016/17 (Singerman 2018). To compute the cost of the annual fertilizer program, we also wanted to obtain fertilization rates per tree. To calculate such rates per tree, we divided the cost per acre of the program by the total number of trees 4 years old and older in year 12. Mature trees receive 100% of the rate that is associated with the survey cost data. However, to compute the cost of fertilizing younger trees we did the following. For trees 1, 2, and 3 years old, we based fertilizer applications on UF/IFAS recommendations (Morgan et al. 2017) that specify using three dry fertilizer applications and eight liquid fertilizer applications. For trees between 4 and 11 years old, we computed a reduction in their material application rate relative to a mature tree based on their height.
To compute the cost of the fertilizing program for tree densities 220 and 303, we calculated the cost per tree in a similar fashion to that described above. However, because fertilizer recommendations are on a peracre basis, we applied a cap equal to the cost of the mature trees’ program in the 145tree density. Regarding the annual application cost per acre for dry fertilizer, we included an application cost upcharge of 11% and 44% for 220 and 303 trees per acre, respectively. Such upcharges are based on the extra cost of fuel and labor involved in the applications due to the additional number of rows per acre in higherdensity groves relative to the 145treesperacre density.
To allow for the possibility of different types of growers planting a new grove, we also made assumptions regarding the level of investment needed in terms of machinery and irrigation. We assume such investment could be either full or partial so as to represent the cases of a new grower and that of a current grower, respectively. The difference between the two scenarios is that in the fullinvestment scenario, the grower needs to purchase all machinery and irrigation equipment required to manage the grove, whereas in the partialinvestment scenario, the grower only needs to make some investment in irrigation (the well and pumping station are assumed to be in place already). However, in both scenarios we assume that the grower needs to purchase a new tractor, ATV, and pickup truck in year 11. The rest of the machinery is assumed to be used beyond its accounting lifespan of 10 years.
Yield is a key parameter in the model, and we assume two possible scenarios for it. In both scenarios, trees start to fruit 26 months after planting. In the first scenario, which we refer to as low, we assume that the boxes per tree for each of the different age cohorts are given by the USDANASS average for southwest Florida during seasons 2013/14 through 2015/16. Such estimates represent approximately a 40% yield reduction compared to preHLB yield levels, which is in agreement with the average loss reported by growers (Singerman and Useche 2017). In the second scenario, which we refer to as high, we assume trees yield more boxes relative to scenario 1 based on the feedback from growers we visited with, who attain yields higher than the state’s average. Regarding yield quality, we assume that in both scenarios each box yields 6.24 pound solids (ps) (FDOC 2017a).
Price is another key parameter in the model. The average deliveredin price for Valencia (lateseason) oranges in 2016/17 was $2.85/ps (FDOC 2017b). To obtain the ontree price (which is the price the grower receives) from the deliveredin price, we subtract $3.27/box (Singerman et al. 2017) for harvesting and $0.07/box for FDOC assessment from deliveredin prices and obtain $2.31/ps. We model three scenarios to represent possible market conditions: low, medium, and high prices. Thus, we use the ontree price estimate as the medium price scenario and assume a 15% decrease (10% increase) with respect to such price to establish the low (high) scenario of $1.97/ps ($2.55/ps); these translate into deliveredin estimates of $2.50/ps and $3.08/ps, respectively. These prices were chosen so as to represent a range of conservative current and future potential market conditions. For simplicity, we assume that prices are constant throughout the investment period. We assume that the annual cash flows are expressed in real terms, so we do not need to adjust them for inflation. Thus, the resulting rates of return are to be interpreted in real terms as well.
By combining the investment requirement (full or partial), cost of production, yields, and prices described in the previous section, we obtained a set of different scenarios for each tree density. Thus, we computed a financial budget for each scenario, which is the basis for the investment analysis—the typical methodology for establishing the profitability of an investment.

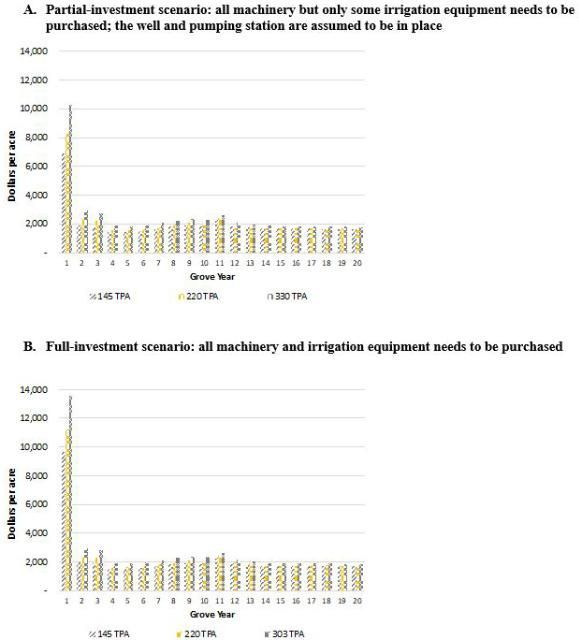

Interestingly, annual expenses for higher tree densities do not increase proportionally with the number of trees planted. Figure 1 shows the cash expenses for each of the three tree densities throughout the 20year investment period. Panel A of that figure denotes the expenses for the partialinvestment scenario and panel B for the fullinvestment scenario. In the partialinvestment scenario, expenses in year 1 are $6,908, $8,253, and $10,265 per acre for 145, 220, and 303 trees per acre, respectively. The latter two are 19% and 49% higher relative to the 145treesperacre baseline. In years 2 and 3, expenses for the 220 and 303tree densities decrease but are still approximately 20% and 50% higher with respect to those of a grove planted at 145 trees per acre. However, in years 4 through 11, expenses are approximately between 7% to 10% higher for the 220treesperacre density, and 16% to 28% higher for the 303treesperacre density compared to the baseline. Starting in year 12, expenses are only up to 6% and 15% higher for the 220 and 303treesperacre density, respectively, compared to the 145density baseline. As shown in Figure 1 panel B, results for the full investment scenario show a similar trend.

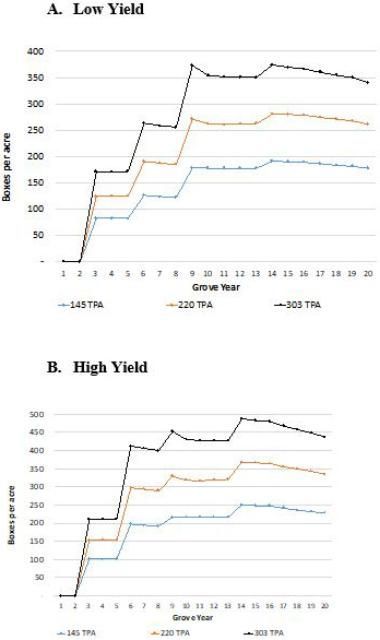

Yield per acre increases proportionally to the higher number of trees planted. Such proportional increase is imposed by assumption because, as described above, we used data on yield per tree from USDANASS (2017) for our calculations. However, starting in year 10, the proportional change decreases due to the effect of the penalty we impose for canopy closure (3.5% and 5% for the 220 and 303 densities, respectively) and resetting strategy for the higher densities. Figure 2 shows yield per acre by grove year for each of the three tree densities under the low and high scenarios and illustrates the proportional increase in yield for tree densities 220 and 303 relative to the 145treedensity baseline.
We use investment analysis to evaluate the profitability of the longterm investment in an orange grove. The Net Present Value (NPV) can be used as a methodology for such evaluation, which consists in summing all the discounted cash flows. As a rule of thumb, investments with a positive NPV should be accepted and those with a negative NPV rejected. The rationale for accepting investments with positive NPVs is that they yield higher returns than the discount rate (i.e., cost of capital). However, it is impossible to estimate a discount rate that would represent the cost of capital for all growers; each individual grower has a different opportunity cost of capital. Therefore, we show the results of the investment analysis using the internal rate of return (IRR) methodology. The IRR is the actual rate of return on the investment; it is the discount rate that makes the NPV be zero.
Table 1 shows the results of the investment analysis for the different scenarios and tree densities. Table 1 panel A shows that in a grove with 145 trees per acre, under a scenario with low yield and low prices, the investment is not profitable; with medium prices, the partialinvestment scenario yields an IRR of 1%. Table 1 panel A also shows that, when prices are high, there is a modest return between 1% and 3% depending on the level of investment in machinery and irrigation. Under a highyield scenario, the IRR of a grove with 145 trees per acre varies from 1% up to 10% depending on the combination of prices and investment requirement. The payback period is 12 years in the bestcase scenario.
Despite the higher initial investment relative to the 145 baseline, Table 1 panel B shows that in a grove with 220 trees per acre, the IRR are positive. Under a lowyield scenario, the IRR ranges between 2% to 10%, depending on market conditions and the level of investment required. The payback period is at least 12 years. Under a highyield scenario, depending on the level of prices and investment, the IRR ranges from 8% to 17%, and the payback period can be as low as 8 years in the bestcase scenario.
Table 1 panel C shows the IRR for a grove with 303 trees per acre improved beyond those obtained for 220 trees per acre even further (despite the even higher level of initial investment relative to the baseline). Under a lowyield scenario, the rate of return ranges between 5% to 13%, depending on market conditions and the level of investment needed. In a highyield scenario, depending on prices and the investment required, the IRR ranges from 11% to 20%, and the payback period can be as low as 8 years in some cases.

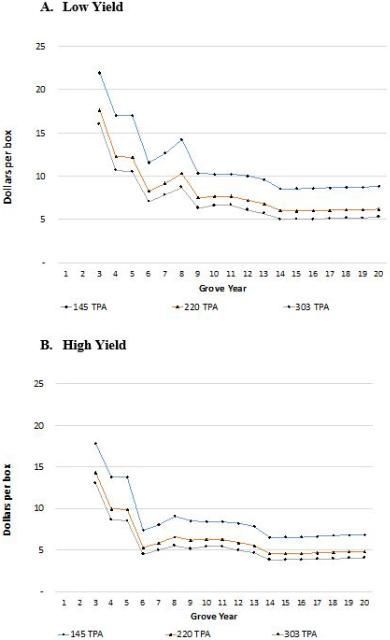

The main driver for the results discussed above is that while the costs of higherdensity groves do not increase proportionally with the number of trees, yield per acre does. More specifically, while in a higherdensity grove each tree produces somewhat less yield compared to a tree in a lowerdensity grove, the higher number of trees contributes to obtain a higher yield per acre. Therefore, planting higherdensity groves could help offset some of the impact of HLB by decreasing the cost of production per box due to costs being allocated to a higher number of boxes (Figure 3), ultimately resulting in an increase in profitability per acre.
We found that a grove with a tree density similar to that of the state’s average is not profitable under current market conditions. Moreover, such tree density only attains a modest return under potential higher prices. However, despite the higher level of investment required for planting 220 and 303 trees per acre, our analysis shows that under the assumptions and scenarios we analyzed, those investments yield positive returns.
The limitations of this analysis are the following. First, because HLB was first found in Florida in 2005, it is not yet clear how trees will be affected by the disease in the future. Therefore, in our model, the impact of HLB on yield of trees that are 13 years old and older is a projection based on current data. Second, we did not include any potential impact of weather events such as freezes or hurricanes (and their effect on prices and yield) in our analysis. Third, potential future management strategies or solutions to HLB could involve planting (new) trees with resistant or tolerant traits to the disease, which could make an existing grove with trees that do not have such traits obsolete.
Excel spreadsheets containing the analysis presented in this article can be downloaded at the website listed below. In addition, once downloaded, the user can customize some of the estimates to make the analysis applicable to their own operation. https://www.crec.ifas.ufl.edu/extension/economics/economic_tools.shtml
Florida Department of Citrus (FDOC). 2017a. Processor Report July 17, 2017.
Florida Department of Citrus (FDOC). 2017b. Post Estimate Fruit Price Report 06.03.17. Available at: https://app.box.com/embed/s/4905ob93hh/file/189137867228?showItemFeedActions=true&showParentPath=true
Jackson, J. L., K. Morgan, and W. R. Lusher. 2015. Citrus Cold Weather Protection and Irrigation Scheduling Tools Using Florida Automated Weather Network (FAWN) Data. SL 296. Gainesville: University of Florida Institute of Food and Agricultural Sciences. https://edis.ifas.ufl.edu/ss509
Morgan, K. T., D. M. Kadyampakeni, M. Zekri, A. W. Schumann, T. Vashisth, and T. A. Obreza. 2017. 2020–2021 Florida Citrus Production Guide: Nutrition Management for Citrus Trees. CMG13. Gainesville: University of Florida Institute of Food and Agricultural Sciences. https://edis.ifas.ufl.edu/cg091
Parsons, L. R., and K. T. Morgan. 2017. Management of Microsprinkler Systems for Florida Citrus. HS958. Gainesville: University of Florida Institute of Food and Agricultural Sciences. https://edis.ifas.ufl.edu/hs204
Ross, S. A., R. W. Westerfield, and J. Jaffe. 2005. Corporate Finance. McGrawHill, New York, NY
Singerman, A. 2018. Cost of Production for Processed Oranges in Southwest Florida, 2016/17. FE1038. Gainesville: University of Florida Institute of Food and Agricultural Sciences. https://edis.ifas.ufl.edu/fe1038
Singerman, A., M. BuraniArouca, and S. H. Futch. 2018. “The Profitability of New Citrus Plantings in Florida in the Era of HLB.” HortScience 53 (11): 1655–1663.
Singerman, A., S. H. Lence, and P. Useche. 2017. “Is Areawide Pest Management Useful? The Case of Citrus Greening.” Applied Economics Policy and Perspectives 39 (4): 609–634.
Singerman, A., and P. Useche. 2017. “Florida Citrus Growers’ First Impressions on Genetically Modified Trees.” AgBioForum, 20 (1): 67–83.
Singerman, A., and M. BuraniArouca. 2017. Evolution of Citrus Disease Management Programs and Their Economic Implications: The Case of Florida’s Citrus Industry. FE915. Gainesville: University of Florida Institute of Food and Agricultural Sciences. https://edis.ifas.ufl.edu/fe915
Singerman, A., M. BuraniArouca, S. H. Futch, and R. Ranieri. 2017. “Harvesting Charges for Florida Citrus, 2016/17.” University of Florida Institute of Food and Agricultural Sciences. http://www.crec.ifas.ufl.edu/extension/economics/pdf/2017%20Harvesting%20Costs%2020170906.pdf
United States Department of Agriculture, National Agricultural Statistics Service (USDANASS). Census of Agriculture. 2002, 2007, 2012.
United States Department of Agriculture, National Agricultural Statistics Service (USDANASS). 2017. Florida Citrus Statistics 2015–16.
United States Department of Agriculture, National Agricultural Statistics Service (USDANASS). 2018. Florida Citrus Statistics 2016–17.
Internal rate of return from investing in a new citrus grove.
Tree Density
Yield Scenario
Price ($)
Capital Investment
IRR
Payback Period (Year)

145TreesPerAcre Scenario

145
Low
Low
15.62/box
Full
7%
Not in 20 years
2.50/ps
Partial
5%
Not in 20 years

Medium
17.78/box
Full
2%
Not in 20 years

2.85/ps
Partial
1%
20

High
19.23/box
Full
1%
20

3.08/ps
Partial
3%
17

High
Low
15.62/box
Full
1%
19

2.50/ps
Partial
4%
16

Medium
17.78/box
Full
5%
15

2.85/ps
Partial
8%
13

High
19.23/box
Full
7%
14

3.08/ps
Partial
10%
12

220TreesPerAcre Scenario

220
Low
Low
15.62/box
Full
2%
18
2.50/ps
Partial
4%
16

Medium
17.78/box
Full
5%
15

2.85/ps
Partial
8%
13

High
19.23/box
Full
7%
13

3.08/ps
Partial
10%
12

High
Low
15.62/box
Full
8%
13

2.50/ps
Partial
11%
11

Medium
17.78/box
Full
11%
11

2.85/ps
Partial
15%
9

High
19.23/box
Full
13%
10

3.08/ps
Partial
17%
8

303TreesPerAcre Scenario

303
Low
Low
15.62/box
Full
5%
15
2.50/ps
Partial
8%
13

Medium
17.78/box
Full
8%
12

2.85/ps
Partial
11%
11

High
19.23/box
Full
10%
11

3.08/ps
Partial
13%
10

High
Low
15.62/box
Full
11%
11

2.50/ps
Partial
14%
9

Medium
17.78/box
Full
14%
9

2.85/ps
Partial
18%
8

High
19.23/box
Full
16%
9

3.08/ps
Partial
20%
8
