Introduction
The azalea leafminer, Caloptilia azaleella (Brants), is a larva of a tiny purple- and yellow-marked moth. It is found almost everywhere azaleas are grown. Leaf injury by the larva is very characteristic. The folding over of the leaf tip or leaf margin occurs after the larva emerges from within the leaf.
In Florida, the larvae are found in every month of the year. However, infestations are most noticeable in nurseries from early spring through August.
Credit: Russell F. Mizell, University of Florida
Distribution
This insect is a destructive pest of azaleas throughout the range of its host. Endemic to Japan, it has been introduced worldwide.
In the United States, this species is found from Florida to Texas and north to Long Island, New York, West Virginia and the Ohio Valley. It also is found in northern California and the US Pacific Northwest (Johnson and Lyon 1994, Heppner 2003).
Description and Biology
The adult azalea leafminer deposits eggs on the underside of the leaf along the midrib. When mature, the larva often selects an undamaged leaf, rolls up in it and pupates. The adult moth emerges in about a week, mates, and begins the cycle again (Johnson and Lyon 1994).
Credit: Russell F. Mizell, University of Florida
Credit: Russell F. Mizell, University of Florida
Credit: Lyle J. Buss, University of Florida
The azalea leafminer is a leafminer only for the first half of its larval life. Upon hatching, the young larva enters the leaf directly beneath its eggshell and feeds as a leafminer, creating a blister on the underside of the leaf. The mined area turns brown (Johnson and Lyon 1994).
Credit: Lyle J. Buss, University of Florida
Once it has reached mid-size, the larva migrates to the upper leaf surface and by means of silk pulls the leaf over its body and chew holes in the leaf. The larva may also tie newly expanding leaves together at the tip of a shoot and feed in the same manner. At this point, the larva is known as a leaftier. Injured leaves usually turn yellow and drop (Johnson and Lyon 1994).
Credit: Lyle J. Buss, University of Florida

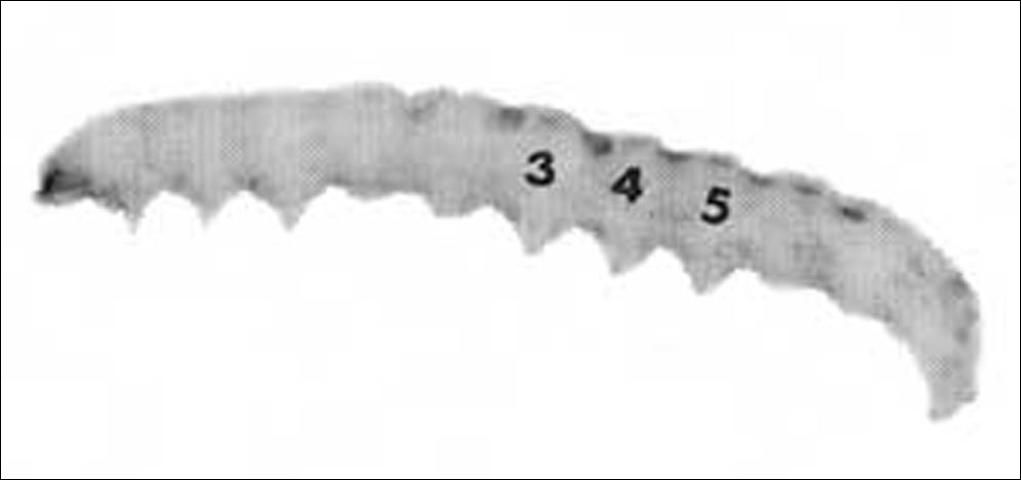

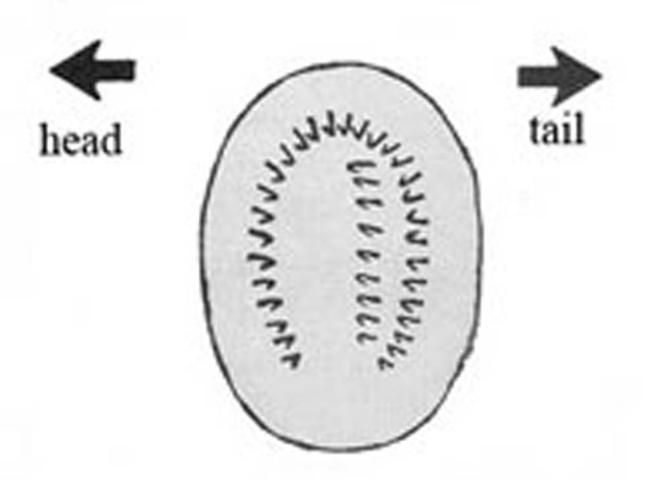

The larval stage that folds the leaf is about 0.5 inches long, yellowish, and with three pairs of abdominal prolegs which are found on abdominal segments 3, 4, and 5. The proleg hooks (crochets) are singly arranged in a U-shaped pattern (penellipse).
Credit: Division of Plant Industry
Credit: Division of Plant Industry
The adult is a small, yellow or golden-colored moth with purplish markings on the wings. The wingspread is about 10 to 13 mm. Most of its life is spent hidden among the leaves of the host.
Credit: Lyle. J Buss, University of Florida
Credit: Lyle J. Buss, University of Florida
Credit: Russell F. Mizell, University of Florida
In Florida, there is continuous breeding. Georgia has reported three to four generations a year, while even as far north as Long Island there are two generations per year. In Oregon, there are three generations per year, and the insect overwinters as a last-instar larva or pupa in a rolled leaf, or occasionally as a tiny miner in a leaf (Johnson and Lyon 1994).
Hosts
Azaleas (Rhodendron spp.) are the only hosts recorded for this insect.
Economic Importance
This leaf miner is a pest of container and field-grown azalea nursery stock. However, plants in the landscape are also commonly attacked. Injured leaves usually turn yellow and drop, thus causing an unsightly plant. If the insect is controlled early, the plants will outgrow the injury it causes (Johnson and Lyon 1994).
Credit: Lyle J. Buss, University of Florida
Credit: Lyle J. Buss, University of Florida
Management
Cultural Control
Prune off and destroy infested branches. Keep plants healthy (properly irrigated and fertilized) so they can tolerate and outgrow the damage (Buss 2006).
Biological Control
There are at least three species of parasitoids of the azalea leafminer, in the genus Sympiesis Förster (Hymenoptera: Eulophidae). They are the major species attacking the pupa (Mizell and Schiffhaur 1991).
Credit: Russell F. Mizell, University of Florida
Credit: Lyle J. Buss, University of Florida
Credit: Lyle J. Buss, University of Florida
Credit: Lyle J. Buss, University of Florida
Chemical Control
Leafminers are difficult to control as they are protected by leaf tissue. The best time to manage them is when larvae first hatch inside the leaves and begin to feed, as plant damage is minimal. When many large or long mines are seen, the leafminer may have completed its development, and control is not useful (Buss 2006).
