Smart Irrigation Controllers: How Do Soil Moisture Sensor (SMS) Irrigation Controllers Work?

Michael D. Dukes, Mary Shedd, and Bernard Cardenas-Lailhacar

This article is part of a series on smart irrigation controllers. The rest of the series can be found at https://edis.ifas.ufl.edu/TOPIC_SERIES_Smart_Irrigation_Controllers.

Introduction

Water is required for the basic growth and maintenance of turfgrass and other landscape plants. When a sufficient amount of water is not present for plant needs, then stress can occur and ultimately lead to reduced quality or death. Irrigation is common in Florida landscapes because of sporadic rainfall and the low water holding capacity of sandy soil. This inability of many of Florida soils to hold substantial water can lead to plant stress after only a few days without rainfall or irrigation.

Water conservation is a growing issue in Florida due to increased demands from a growing population. One of the areas with the largest potential for reducing water consumption is residential outdoor water use, which accounts for up to half of publicly supplied drinking water. Most new homes built in Florida have automated irrigation systems. These irrigation systems use an irrigation timer to schedule irrigation. These automated irrigation systems have been shown to use 47% more water on average than sprinkler systems that are not automated (i.e. hose and sprinkler), which can be attributed largely to the tendency to set irrigation controllers and not readjust for varying weather conditions. Irrigation control technology that improves water application efficiency is now available. In particular, soil moisture sensor (SMS) irrigation controllers can reduce the number of unnecessary irrigation events.

How Soil Moisture Sensor Systems Work

Most soil moisture sensors are designed to estimate soil volumetric water content based on the dielectric constant (soil bulk permittivity) of the soil. The dielectric constant can be thought of as the soil's ability to transmit electricity. The dielectric constant of soil increases as the water content of the soil increases. This response is due to the fact that the dielectric constant of water is much larger than the other soil components, including air. Thus, measurement of the dielectric constant gives a predictable estimation of water content. For more information on soil moisture sensors see, Field Devices for Monitoring Soil Water Content https://edis.ifas.ufl.edu/ae266.

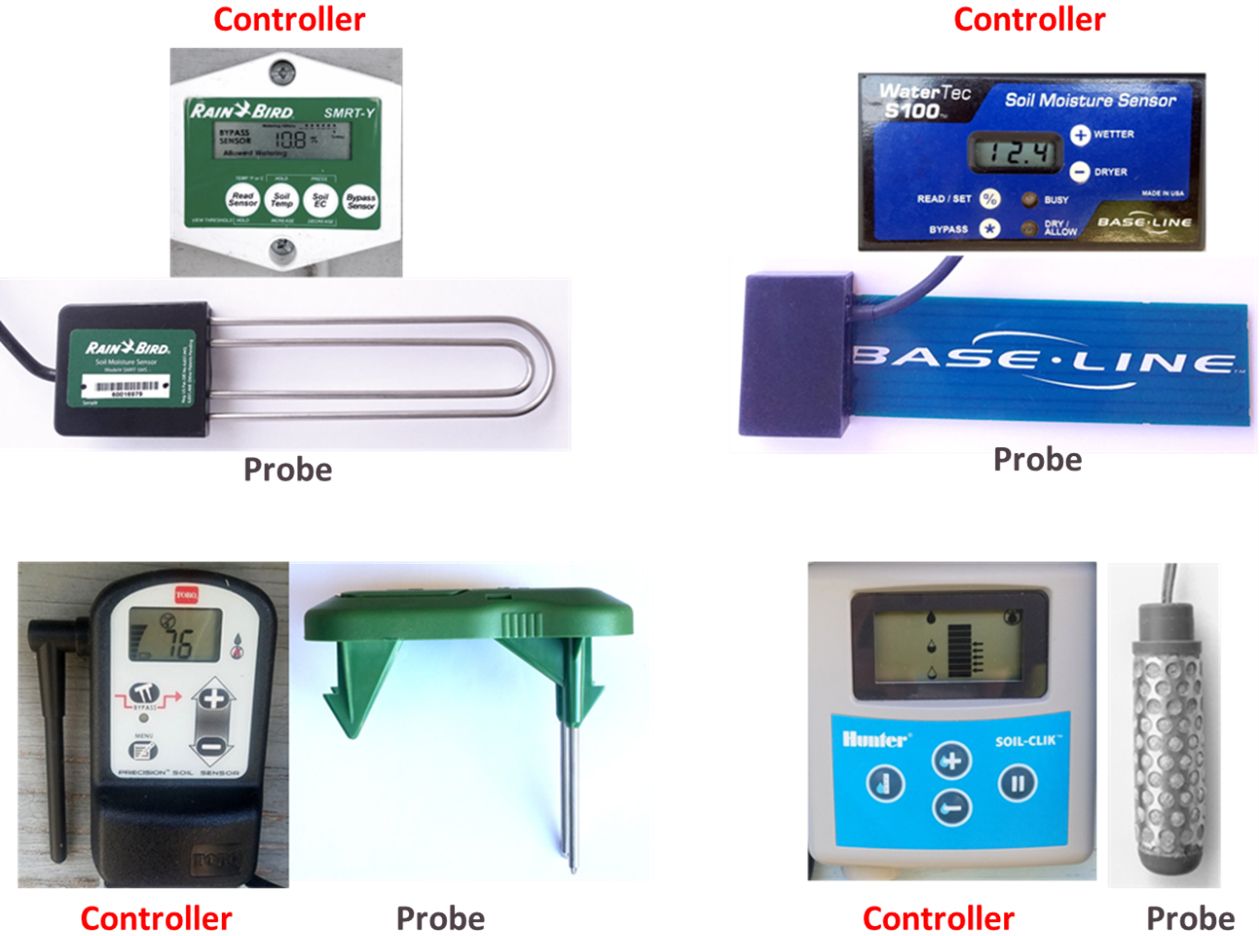

Bypass type soil moisture irrigation controllers use water content information from the sensor to either allow or bypass scheduled irrigation cycles on the irrigation timer (Figures 1 and 2). The SMS controller has an adjustable threshold setting and, if the soil water content exceeds that setting, the event is bypassed. The soil water content threshold is set by the user. Another type of control technique with SMS devices is "on-demand" where the controller initiates irrigation at a low threshold and terminates irrigation at a high threshold. The "on-demand" SMS controller concept is discussed in What Makes an Irrigation Controller Smart? http://www.edis.ifas.ufl.edu/ae442.

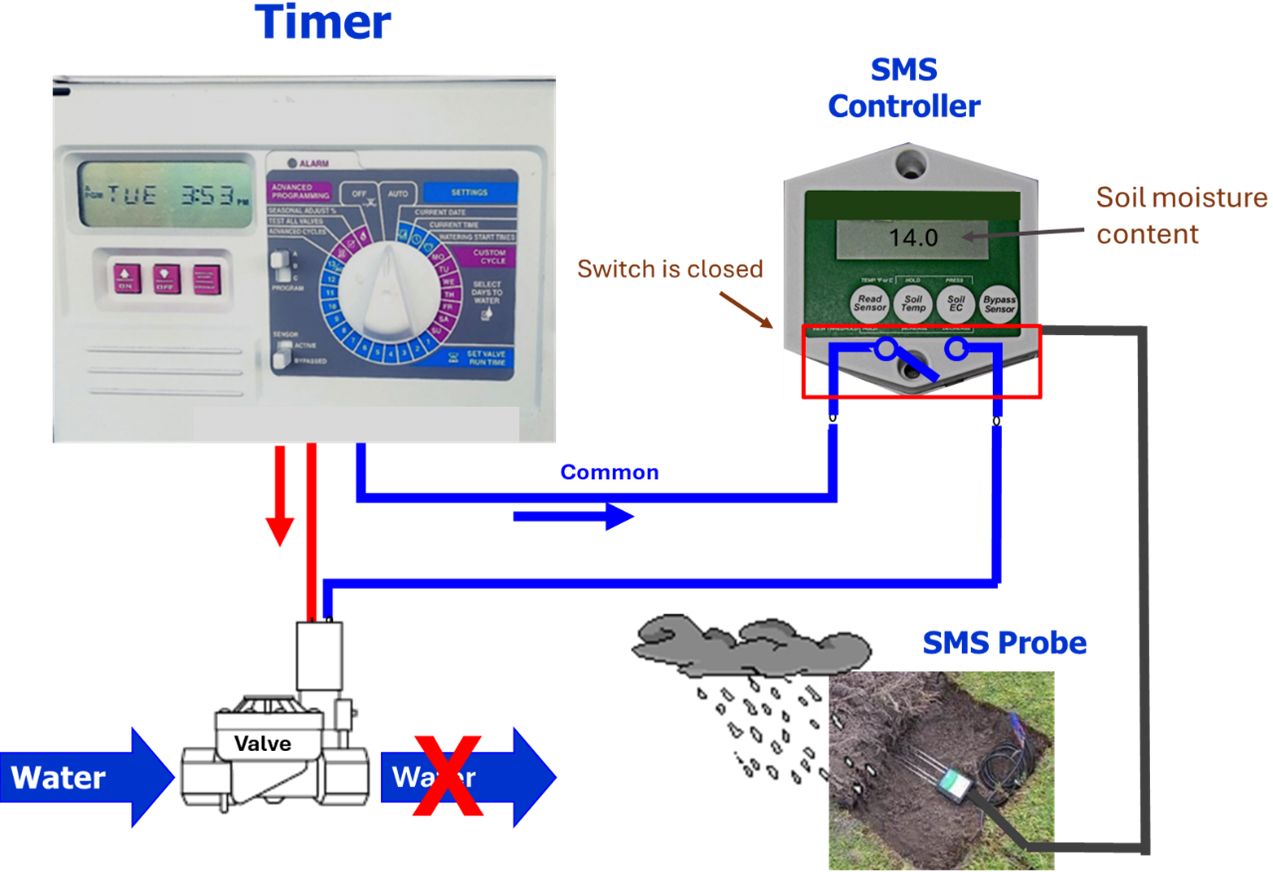

Figure 1. Simplified diagram showing how a soil moisture sensor (SMS) is typically connected to an automated irrigation system. The irrigation timer is connected to a solenoid valve through a hot and a common wire. The common wire is spliced with the SMS system (a controller that acts as a switch, and a sensor buried in the root zone that estimates the soil water content). The SMS takes a reading of the amount of water in the soil and the SMS controller uses that information to open or close the switch. If the soil water content is below the threshold established by the user, the controller will close the switch, allowing power from the timer to reach the irrigation valve and trigger irrigation. In this example the controller opens the switch, bypassing irrigation, because of rainfall wetting the soil around the soil moisture sensor.
Figure 1.  Simplified diagram showing how a soil moisture sensor (SMS) is typically connected to an automated irrigation system. The irrigation timer is connected to a solenoid valve through a hot and a common wire. The common wire is spliced with the SMS system (a controller that acts as a switch, and a sensor buried in the root zone that estimates the soil water content). The SMS takes a reading of the amount of water in the soil and the SMS controller uses that information to open or close the switch. If the soil water content is below the threshold established by the user, the controller will close the switch, allowing power from the timer to reach the irrigation valve and trigger irrigation. In this example the controller opens the switch, bypassing irrigation, because of rainfall wetting the soil around the soil moisture sensor.
Credit: Melissa Haley

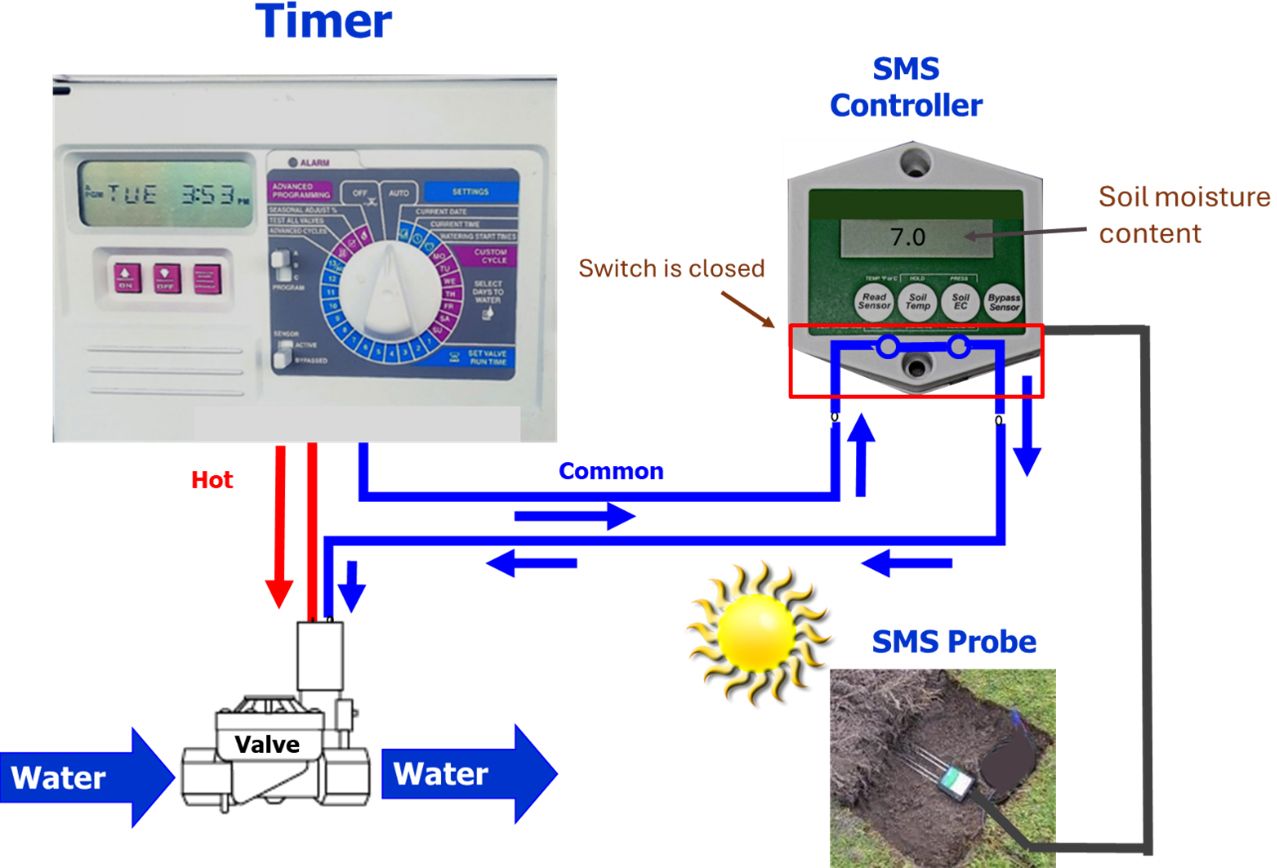

Figure 2. In this example the controller closes the switch allowing irrigation because of dry conditions in the soil around the soil moisture sensor.
Figure 2.  In this example the controller closes the switch allowing irrigation because of dry conditions in the soil around the soil moisture sensor.



Sensor Installation

A single sensor can be used to control the irrigation for many zones (where an irrigation zone is defined by a solenoid valve) or multiple sensors can be used to irrigate individual zones. In the case of one sensor for several zones, the zone that is normally the driest, or most in need of irrigation, is selected for placement of the sensor in order to ensure adequate irrigation in all zones.

Some general rules for the burial of the soil moisture sensor are:

• Soil in the area of burial should be representative of the entire irrigated area.

  • Sensors should be buried in the root zone of the plants to be irrigated, because this is where plants will extract water. Burial in the root zone will help ensure adequate turf or landscape quality. For turfgrass, the sensor should typically be buried at about three inches deep.

  • Sensors need to be in good contact with the soil after burial; there should be no air gaps surrounding the sensor. Soil should be packed firmly but not excessively around the sensor.

  • If one sensor is used to control the entire irrigation system, it should be buried in the zone that requires water first, to ensure that all zones get adequate irrigation. Typically, this will be an area with full sun or the area with the most sun exposure.

  • Sensors should be placed at least 5 feet from the home, property line, or an impervious surface (such as a driveway) and 3 feet from a planted bed area.

  • Sensors should also be located at least 5 feet from irrigation heads and toward the center of an irrigation zone.

  • Sensors should not be buried in high traffic areas to prevent excess compaction of the soil around the sensor.

Setting the Sensor Threshold

Once the sensor has been buried and the SMS controller has been connected to the irrigation system, the sensor needs to be calibrated and/or the soil water content threshold needs to be selected.

Based on the sandy soils in much of Florida, the following steps should be followed to calibrate or select a threshold for the soil moisture sensor controller:

Step 1. Apply water to the area where the sensor is buried. Either set the irrigation zone to apply at least 1 inch of water or use a 5-gallon bucket to apply directly over the buried sensor.
Step 2. Leave the area alone for 24 hours, and do not apply more water. If it rains during the 24 hours, the process should be started over.
Step 3. The water content after 24 hours is now the sensor threshold used to allow or bypass scheduled irrigation events. This threshold may be decreased slightly (~20%) to allow more storage for rainfall; however, the landscape will still need to be carefully monitored to ensure that adequate irrigation is being supplied.

The last step may vary slightly for each type of SMS controller. Generally, the manufacturer's instructions should be followed for the actual setup of the controller. These steps are provided mainly to direct how to establish the proper soil moisture content for the specific soil.

Programming the Irrigation Timer with a Soil Moisture Sensor System

Soil moisture control devices can reduce water use on the lawn by bypassing scheduled irrigation events, but it is important to make sure the irrigation schedule is programmed into the irrigation timer correctly. Programming the irrigation timer correctly for the area to be irrigated can make the use of irrigation water more efficient. Before setting the irrigation schedule it is important to determine when the water will be applied and how much to apply with each irrigation event. In most areas of Florida the days per week in which irrigation is allowed is already limited by water restrictions. Irrigation run time is the amount of time an irrigation zone has to be turned on to apply the desired amount of water. It is affected by the water application rate of the irrigation sprinklers and the time of the year. For more information on setting the irrigation timer properly see Operation of Residential Irrigation Controllers https://edis.ifas.ufl.edu/ae220, which is also provided as a tool in the Florida Automated Weather Network (FAWN) urban irrigation scheduler (http://fawn.ifas.ufl.edu/tools/urban_irrigation/).
